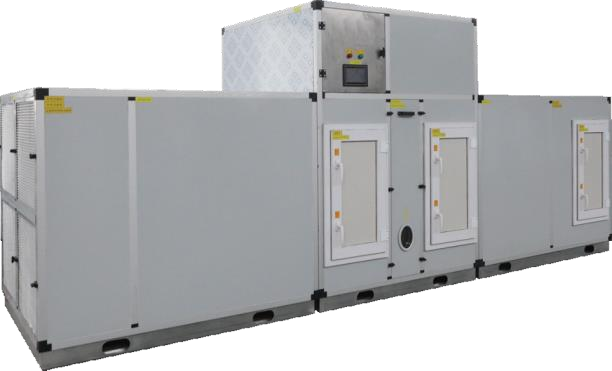

✦Single-Rotor Dehumidification Unit ; ✦Indoor comfort, industrial applications ; ✦15-25 ℃ ;10-50%; -10-5Cd ✦The core component of a rotary dehumidifier is the dehumidification rotor. This rotor is synthesized using glass fibers and heat-resistant ceramic materials as internal support carriers, combined with specialized moisture-absorbing media (such as high-efficiency silica gel or 4A molecular sieves).
✦Industrial applications ✦15~25°C, 1~10%, -70~-10°Cd ✦The core component of a rotary dehumidifier is the dehumidification rotor. This rotor is synthesized using glass fibers and heat-resistant ceramic materials as internal support carriers, combined with specialized moisture-absorbing media (such as high-efficiency silica gel or 4A molecular sieves).

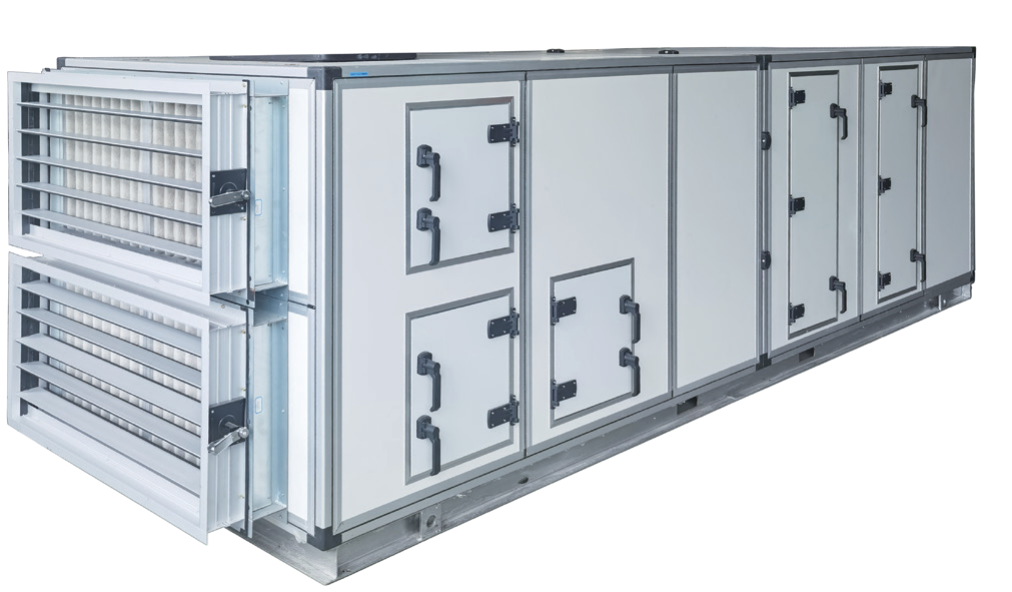

Single-Stage Coated Dehumidification Unit ✦Coating Adsorption coating that adheres to metal surfaces. Produced through automated production lines, it is durable, with high moisture adsorption capacity, and can be repeatedly cleaned. ✦Cycle Based on the differential adsorption of water molecules from the air by the coating under varying temperature and humidity conditions, the coating is employed on finned tubes to operate in a cycle of cooling

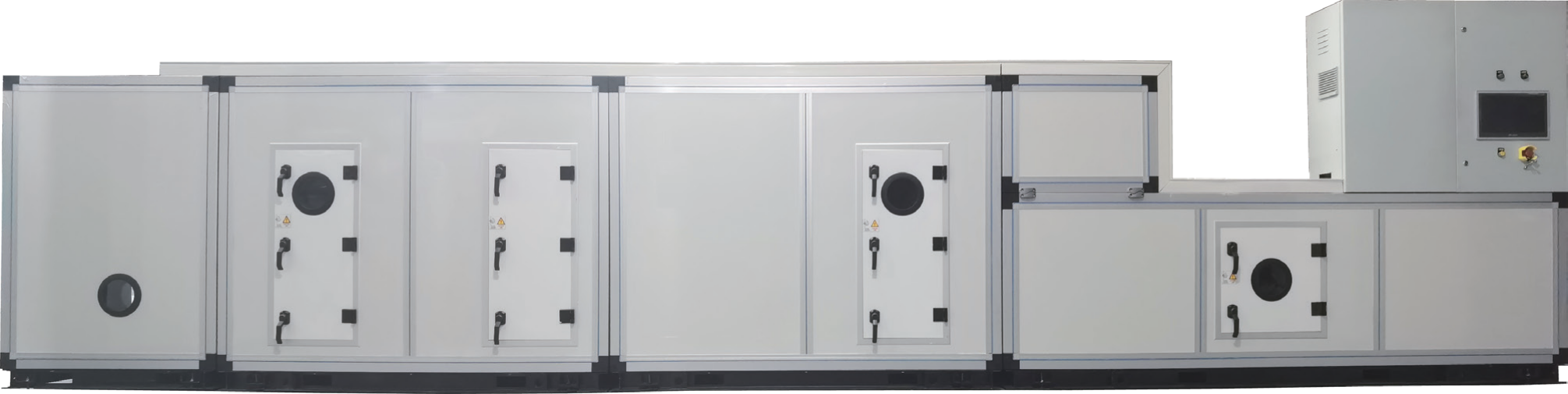

Two-Stage Coated Dehumidification Unit ✦Coating Adsorption coating that adheres to metal surfaces. Produced through automated production lines, it is durable, with high moisture adsorption capacity, and can be repeatedly cleaned. ✦Cycle Based on the differential adsorption of water molecules from the air by the coating under varying temperature and humidity conditions, the coating is employed on finned tubes to operate in a cycle of cooling
The VZCH series compression heat zero gas consumption regeneration adsorption dryer first uses high-temperature and high-pressure compressed air to compress and heat the wet adsorbent for regeneration. After the compression heating stage is completed, turn on the auxiliary heater to perform secondary heating and regeneration of the adsorbent. The sooling stage is achieved by blowing compressed air through the after-cooler to the required room temperature for adsorption and reaching a high degree of dryness until regeneration is completed.
The VZAH-40 series hot blast zero gas consumption regeneration adsorption dryer uses a blower to suck in ambient air and heat it in the same direction to regenerate the wet adsorbent. The cooling uses a blower and an intercooler for closed -loop cooling of the high-temperature adsorbent. The entire regeneration process does not consume expensive product dry air, resulting in lower operating costs
The VCMA series refrigerated dryer reduced the temperature of compressed air from 2 ℃, and a large amount of water vapor condenses into water. The refrigeration chamber dryer uses the principle of refrigeration to cool compressed air at higher temperatures to about 2℃-3℃ and discharge the condensate, thereby achieving the purpose of drying compressed air.
